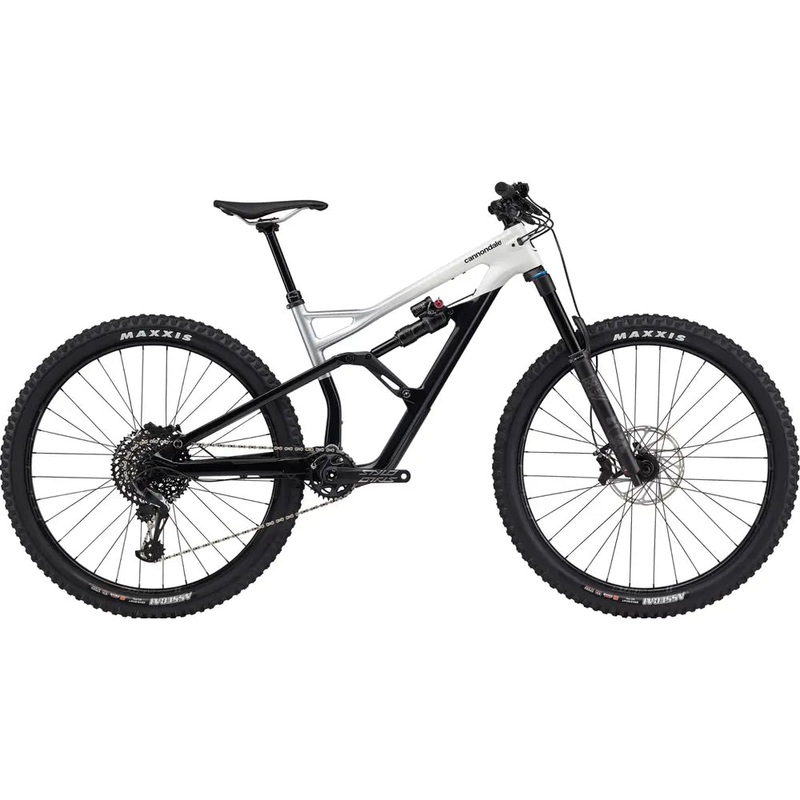

JEKYLL 29 SPARES 2019-2020

SPECIFICATIONS

Rear Travel-120mm / 150mm

Head Tube-UPR: 1-1/2 LWR: 1.8

Headset –FSA Orbit C-40-ACB w/ 9.1 mm stack

Bottom Bracket: Type / Width –PF30 / 83 mm

Front Derailleur-N/A

Seat Post: Dia./Binder-31.6mm / 34.9mm

Minimum Seat Post Insert –100 mm

Tire Size x Maximum Width –29 x 2.5 (measured)

Maximum Fork Length –565mm

Rear Shock: Eye-to-Eye / Stroke / Bushing Width –230 mm / 60 mm / FT: 30 x 8 mm, RR: 30 x 8 mm

Sag –30%, 18 mm

Chain Guide –ISCG05

Rear Brake Mount / Type –Flat Mount

Min / Max Rotor Diameter– 160mm / 180mm

Axles: Type / Length-Maxle TA / 148 x 12 mm, 180 mm length

Ai Offset-Rear Wheel: 3 mm Offset to NDS, SRAM Chainring: +6 mm Offset, Hollowgram SpideRing: Ai Offset

Maximum Weight Limit: Total– 138kg
